WHY Topaz 2?

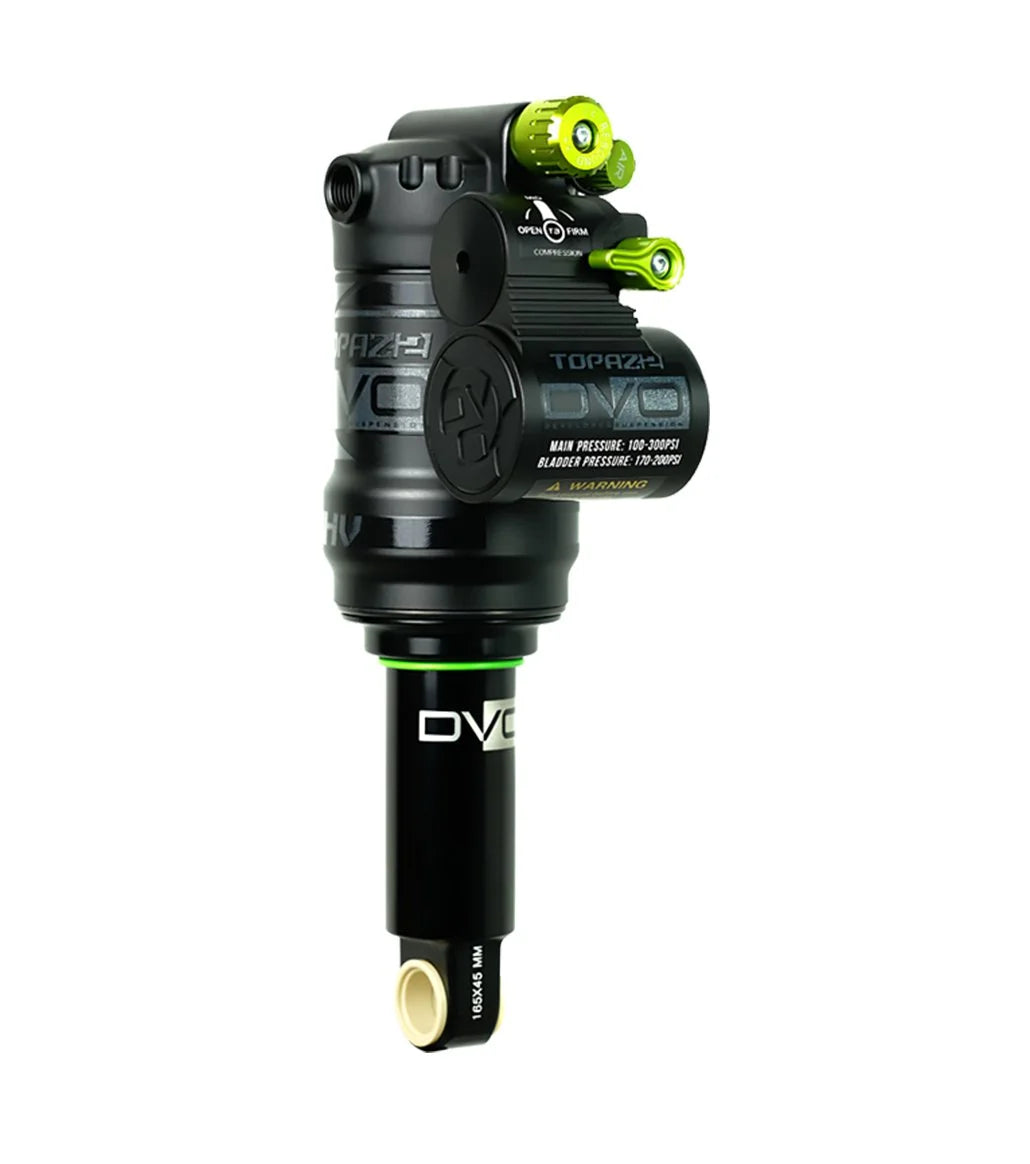

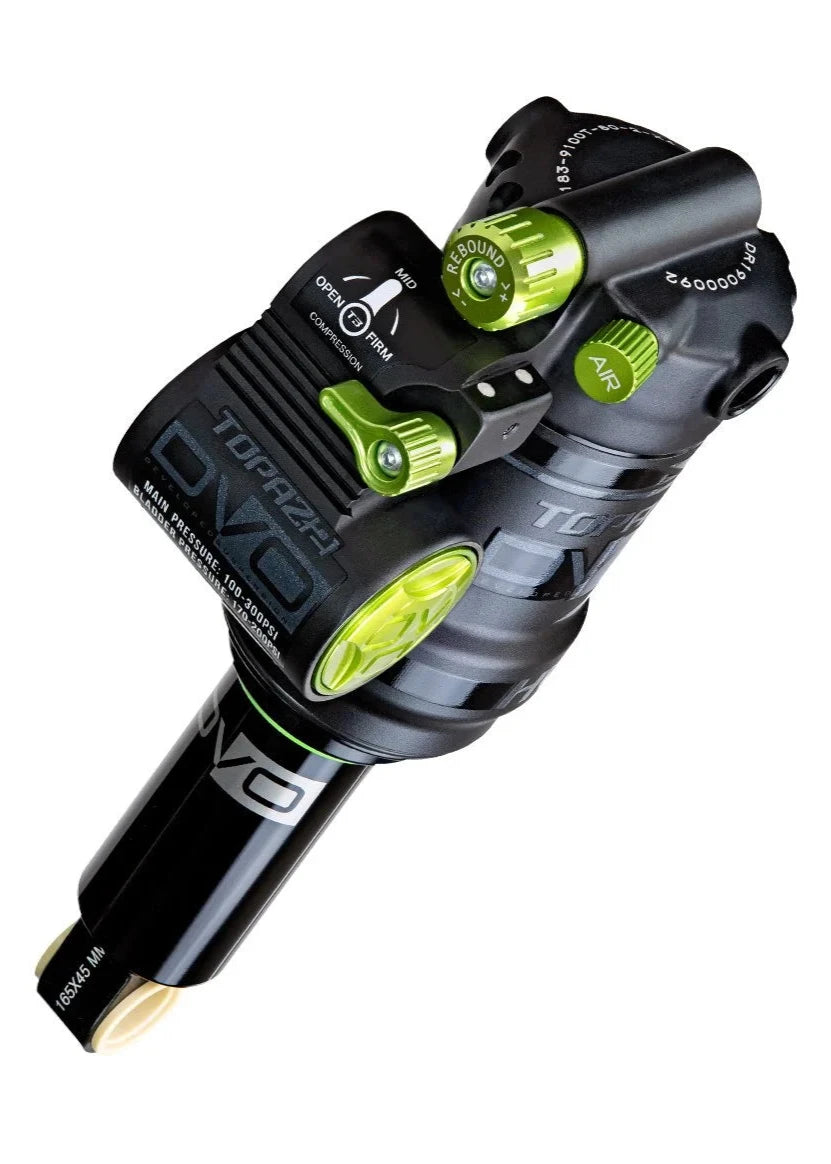

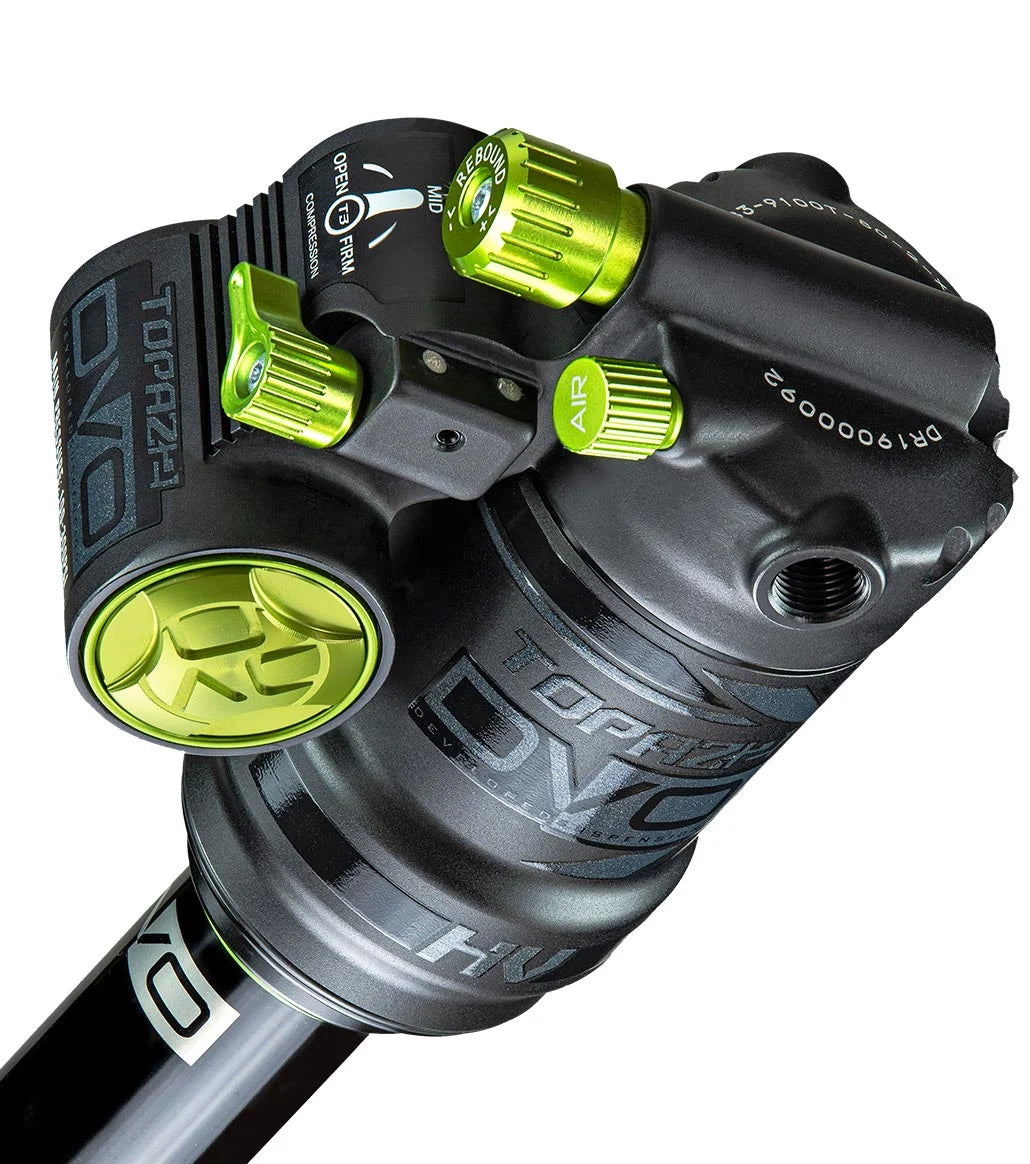

The Topaz 2 is the latest iteration of the Topaz Air series. This shock has been optimized to suite the needs of modern suspension kinematics working off a lower leverage ratio. The HV (high volume) negative reduces the breakaway force to counteract the a lower starting leverage force from the linkage design. The housing is designed around a transverse reservoir layout to aid in oil flow and achieve more frame clearance.
The Topaz 2 is available in metric trunnion sizes with T3 compression, dynamic rebound, positive/negative volume adjust, and adjustable bladder pressure.
Spec
-
Damper
3 Position Compression Switch
Dynamic Rebound
Bladder Pressure Adjust
-
Spring Features
Volume Band Tuning for Positive and Negative spring
-
Trunnion Sizes
205x65
205x62.5
205x60
185x55
185x52.5
185x51
